Small American Clamp Assembly Machine

Small American Clamp Assembly Machine
Small American Clamp Assembly Machine
Small American Clamp Assembly Machine

Small American Clamp Assembly Machine

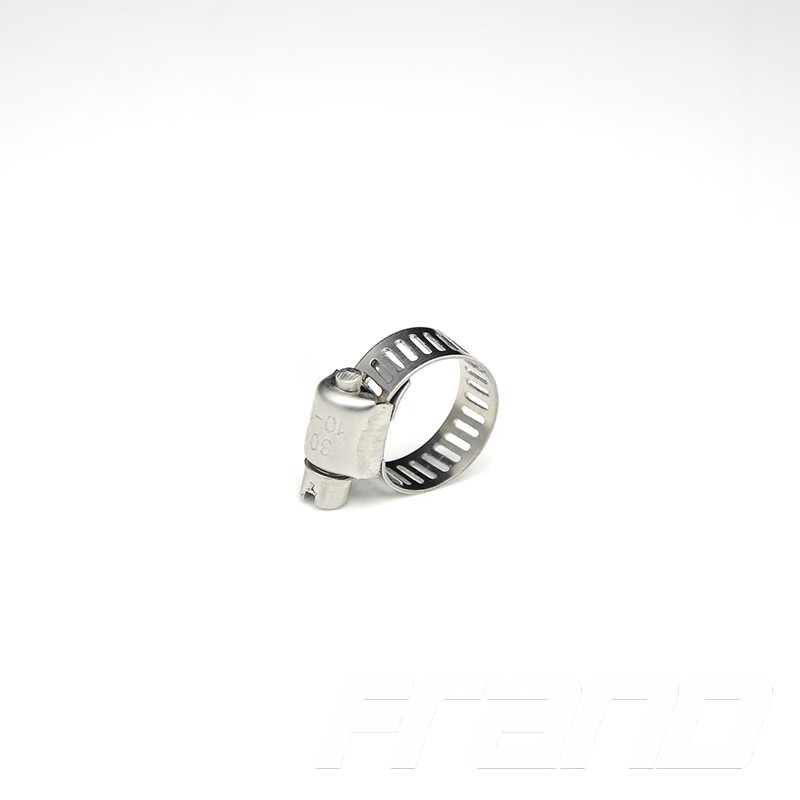

  • Support custom-made stainless steel hose clamps of various sizes.
  • The steel belt has through holes, and the tight tight steel belt adopts the through-hole process, which makes the tightening more firm.
  • Anti-rust, durable, various specifications, support customization Free choice, support customization

  • Product Origin :

    Xiamen,China

  • Efficiency :

    1200pcs/hour

  • color :

    Customized

  • Delivery Port :

    Xiamen,China

  • Delivery Date :

    90 working days

  • Stock Qty :

    1 Set

  • Shipping Port :

    Xiamen,China

  • Weight :

    1T

  • model :

    FLD-XM-20

  • Packing :

    Wooden Box
Inquiry now

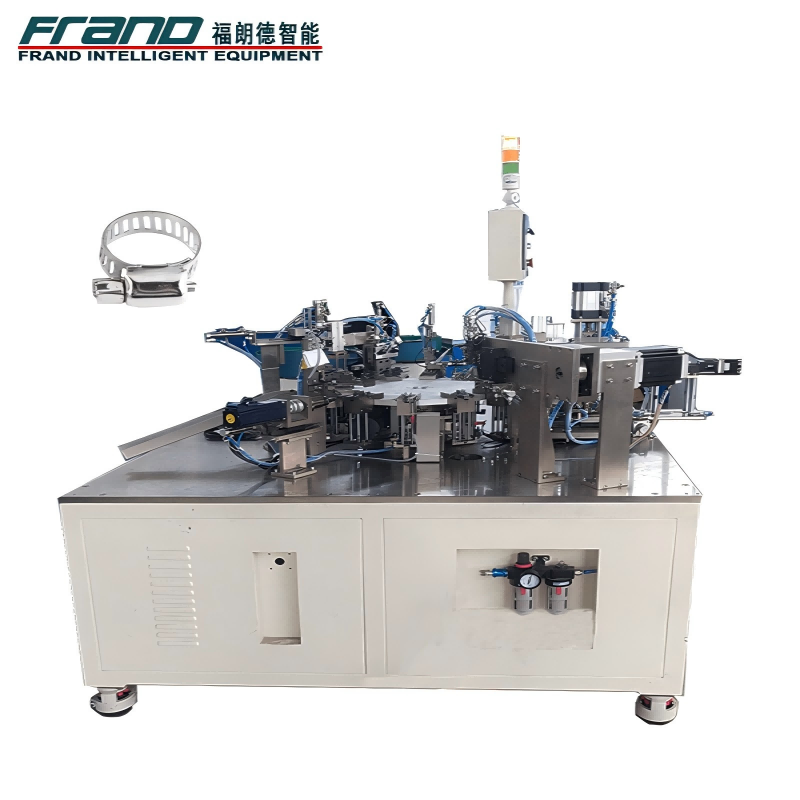

Small American Hose Clamp Assembly Machine

  • The small American-style hose clamp automatic assembly machine adopts automatic feeding of steel belts, hoop shells, and screws, and automatically completes the cutting, forming, riveting and pressing of hoop shells, locking screws, locking circles, and blanking of steel belts.
  • Complete automated production of finished products.

Hose clamp assembly machine

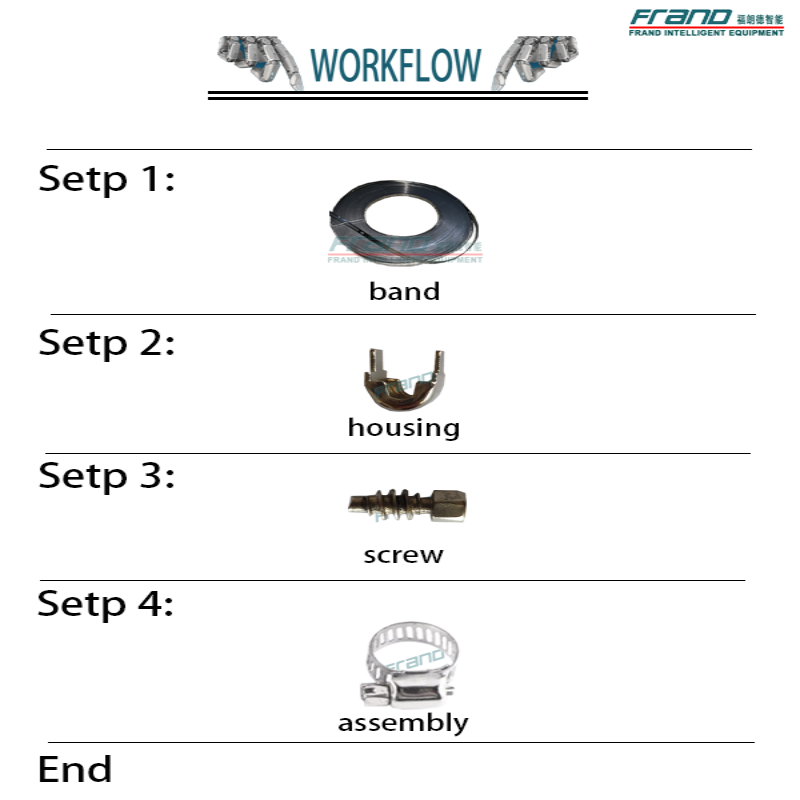

•   WORKFLOW

STEP1: The clamp shell is automatically fed by the vibrating plate and sent to the turntable for tooling.

STEP2: The screw is automatically fed by the vibrating plate, and the locking screw is put into the hoop shell.

STEP3: The steel belt is accurately fed by a servo motor, and the length can be set. After cutting, forming, riveting with the hoop shell, rounding, and locking the belt.

STEP4: After completing the assembly of the product, unloading.

•  SPECIFICATION

Product name Hose Clamp Assembly Machine
Size

1800mm(length)*1800mm(width)*1800(height)
Weight

1Ton
Working area

4000mm(length)*2600mm(width)
Strength

AC220v,50HZ
Pressure

0.5Mpa-0.7Mpa(72.5-101.5PSI)
Efficiency

1200pcs/hour
Service

One year
