Automatic Assembly Machine
Small American hose clamp adjustable worm gear clamp
Small American hose clamp assembly machine
Component of Small American hose clamp

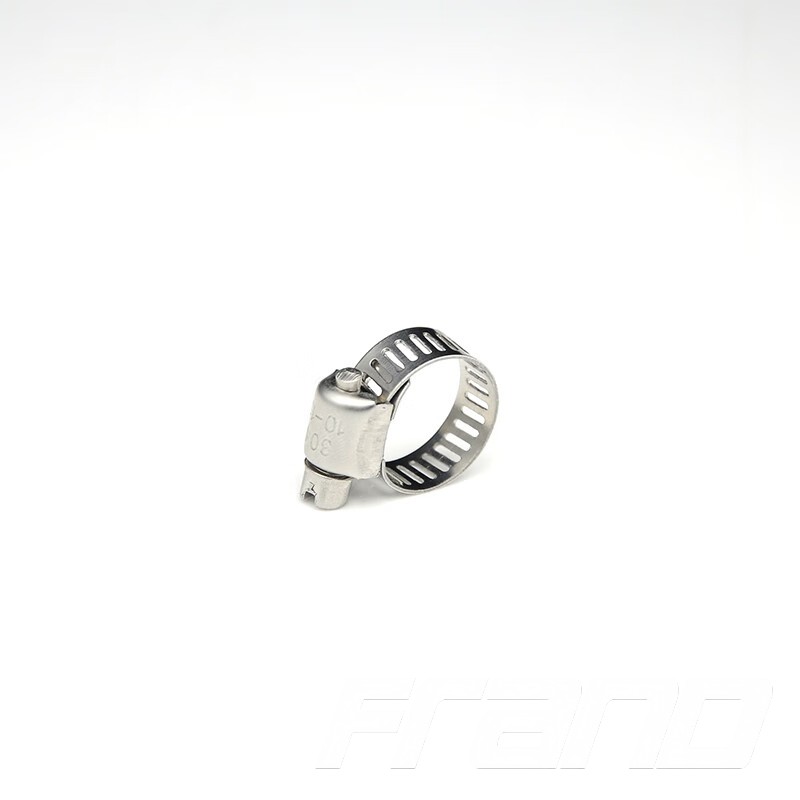

Small American hose clamp

Small American hose clamp adjustable worm gear clamp

Small American Hose Clamp Adjustable Worm Gear Hose Clamp, Fuel Line Clamp for Plumbing, Automotive And Mechanical Application.



  • Product Origin :

    China
  • Efficiency :

    1200pcs/hour
  • color :

    RAL7035
  • delivery_port :

    FOB
  • delivery_date :

    90days
  • qty :

    1 Set
  • Shipping Port :

    Fujian xiamen
  • weigh :

    1T
  • model :

    FLD-XM-20
  • Packing :

    Wooden Box

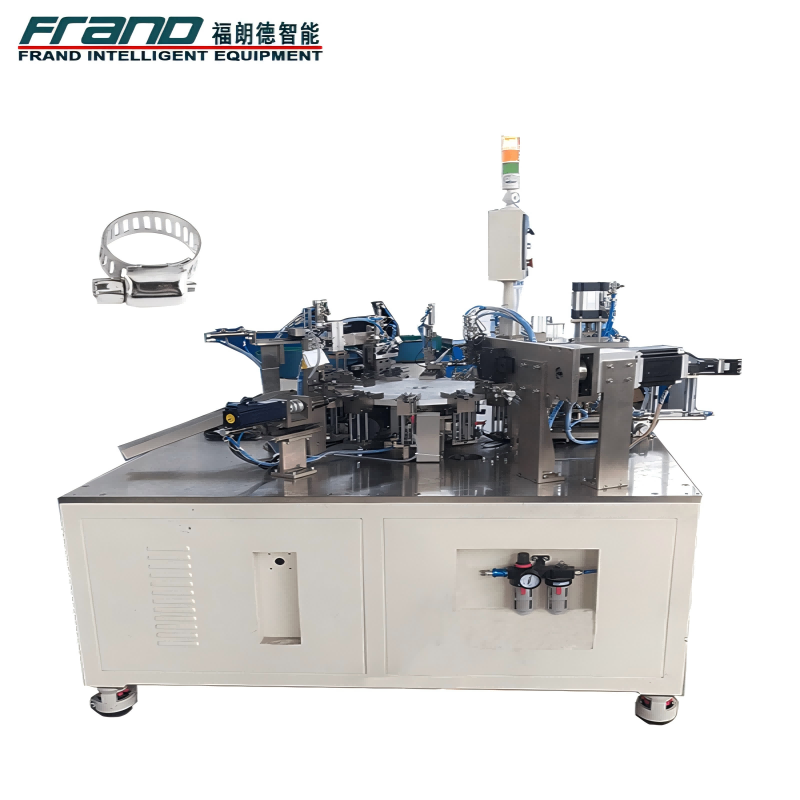

Small American hose clamp assembly machine

The small American-style hose clamp automatic assembly machine adopts automatic feeding of steel belts, hoop shells, and screws, and automatically completes the cutting, forming, riveting and pressing of hoop shells, locking screws, locking circles, and blanking of steel belts. Complete automated production of finished products.

Hose clamp assembly machine

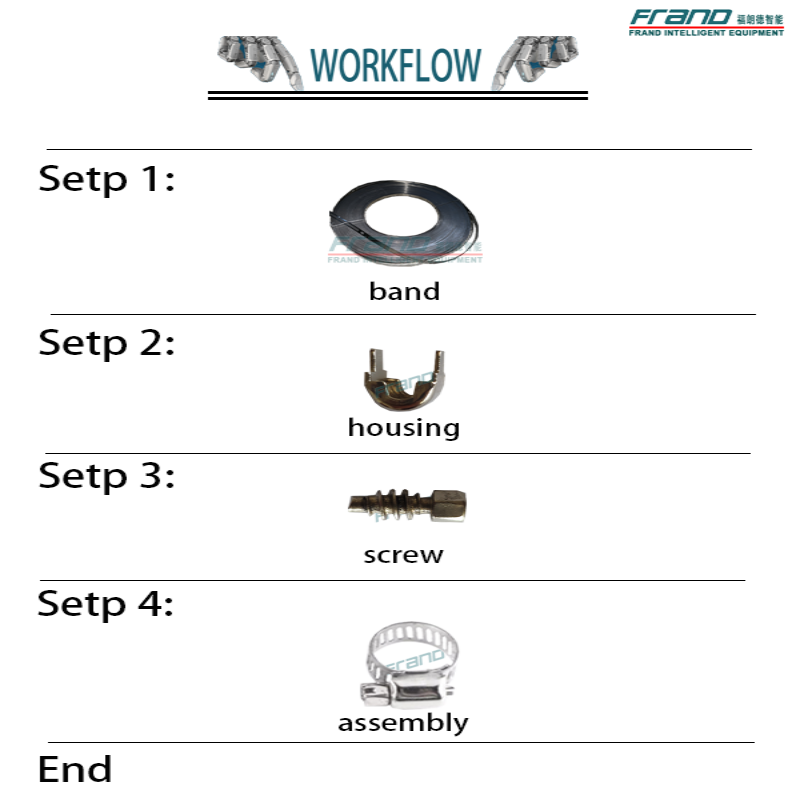

•   WORKFLOW

STEP1: The clamp shell is automatically fed by the vibrating plate and sent to the turntable for tooling.

STEP2: The screw is automatically fed by the vibrating plate, and the locking screw is put into the hoop shell.

STEP3: The steel belt is accurately fed by a servo motor, and the length can be set. After cutting, forming, riveting with the hoop shell, rounding, and locking the belt.

STEP4: After completing the assembly of the product, unloading.

•  SPECIFICATION

Product name Hose clamp assembly machine
Size

1800mm(length)*1800mm(width)*1800(height)

Weight

1Ton

Working area

4000mm(length)*2600mm(width)

Strength

AC220v,50HZ

Pressure

0.5Mpa-0.7Mpa(72.5-101.5PSI)

Efficiency

1200pcs/hour

Service

One year
