Adjustable American Stainless steel hose clamp machine

Adjustable American Stainless steel hose clamp machine

This equipment completes the production process of steel belt and hoop shell automatic assembly, riveting, forming, and blanking of large American-style throat hoops.

Product Origin :
China
Efficiency :
1200pcs/hour
color :
RAL7035
delivery_port :
Fujian xiamen
delivery_date :
90days
qty :
1 Set
Shipping Port :
Fujian xiamen
weigh :
1T
model :
FLD-XM-21
Packing :
Wooden Box

Inquiry now

Product Details

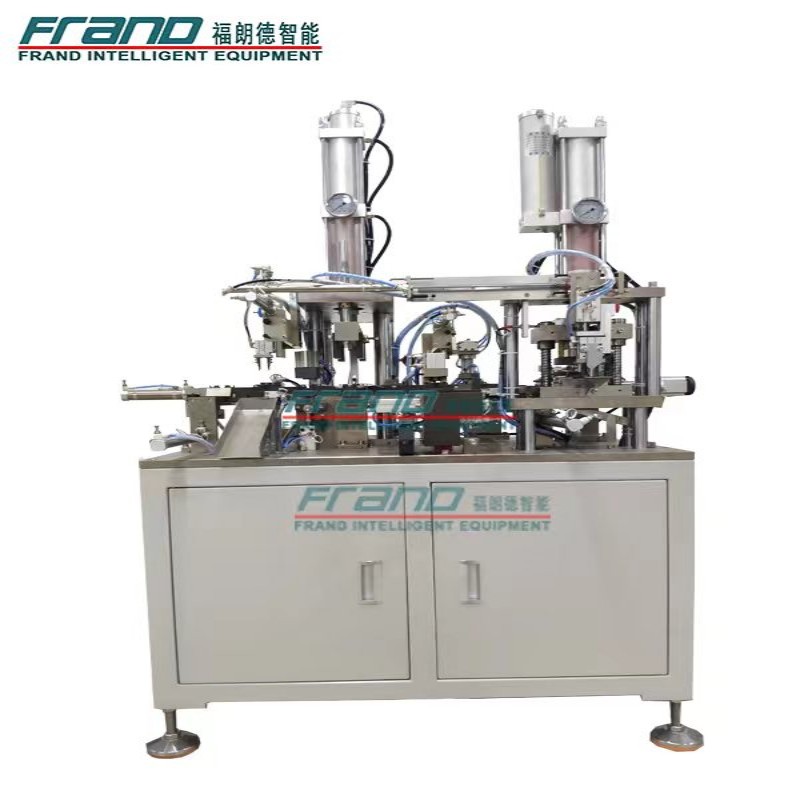

American head piercing assembly machine

This equipment completes the production process of steel belt and hoop shell automatic assembly, riveting, forming, and blanking of large American-style throat hoops.

• WORKFLOW

STEP1: The steel belt is fed accurately by servo motor, the length can be set, cut and formed by the mold.

STEP2: The hoop shell is automatically loaded by the vibrating plate, assembled with the formed steel strip and riveted.

STEP3: After completing the assembly of the product, the material is cut.

• SPECIFICATION

Product name	Hose clamp assembly machine
Size	1200mm(length)1700mm(width)1800(height)
Weight	1Ton
Working area	3000mm(length)*3000mm(width)
Strength	AC220v,50HZ
Pressure	0.5Mpa-0.7Mpa(72.5-101.5PSI)
Efficiency	1300pcs/hour
Service	One year

OTHER PRODUCTS


1111	2222	3333	4444

Hot Tags :

Leave a message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

categories

how can we help you

You can contact us any way tat is convenient for you. We are available 24/7 via email or telephone.

New Products

Related Products

Hose clamps automatic assembly equipment

Mechanical equipment hose clamp automatic assembly machine

Hose clamps series automatic assembly equipment of funtion powerful、Stable opera-tion、High production efficiency, Can achieve: automatic feeding、automatic posi-tioning、automatic riveting、automatic rolling round、automaticlocking、automatic detection、automatic discharge function andso forth. Based on the existing operat-ing experience, a workercanlook afterseven devicesso can achieve uninterrupted production.

High pressure German type hose crimping welding machine

This equipment is used for automatic assembly of welding German products Welded products are manually fed into the conveyor chute Automatically bend, roll, and lock screws Equipment operation is simple and easy to learn The equipment can be selected to produce diameters 12, 16, 22, 25, 27

Stainless Steel 316 German Type Hose Clamp

We produces a variety of hose clamps, stainless steel no-hub couplings and gaskets which are widely applied in the industries of auto oil pipeline, motor pipeline, drainage system, and so on.

Through-hole American Stainless steel clamp assembly machine

This equipment completes the automatic assembly, riveting, rolling and locking of the steel strip, hoop shell and screws of the small American hose clamp, and finally completes the production of the finished product.

Adjustable American Stainless steel hose clamp machine

This equipment completes the production process of steel belt and hoop shell automatic assembly, riveting, forming, and blanking of large American-style throat hoops.

Large American hose clamp assembly machine

American perforated hose clamp assembly machine

This equipment completes the automatic assembly, riveting, rolling, and screw locking of steel strips, hoop shells, and screws of large American-style throat hoops, and finally completes the production of finished products.

Japanese elastic clamp assembly machine

The function of the equipment is to complete the automatic assembly of elastic clamps. Clamps and plastic handles are fed by a vibrating plate, automatically assembled, unloaded, etc., and finally the automatic assembly of the clamps is completed.

Super pressure-resistant German type clamp with welding assembly machine

The equipment can be selected to produce diameters 12, 16, 22, 25, 27 Equipment operation is simple and easy to learn

304 Stainless Steel American Type Hose Clamp

We produces a variety of hose clamps, stainless steel no-hub couplings and gaskets which are widely applied in the industries of auto oil pipeline, motor pipeline, drainage system, and so on.

American type worm gear hose

Support custom-made stainless steel hose clamps of various sizes. The steel belt has through holes, and the tight tight steel belt adopts the through-hole process, which makes the tightening more firm. Anti-rust, durable, various specifications, support customization Free choice, support customization

Spring hose clamp assembly machine

Spring clamps are also called Japanese clamps and spring clamps. It is made of spring steel and is stamped into a round shape, with two ears for hand pressing on the outer ring. When clamping is required, you only need to press the ears firmly to make the inner ring bigger, so that it can be inserted into the round tube, and then loosen the handle to clamp. Easy to use and can be used repeatedly.

Hose Clamp assembly machine

Stainless steel German hose clamp assembly machine

The material is iron, the surface is galvanized. The buckle is stamped and formed, with high torque and moderately high price. The market share is low due to the high cost of production.

Small American hose clamp assembly machine

Small American hose clamp adjustable worm gear clamp

Small American Hose Clamp Adjustable Worm Gear Hose Clamp, Fuel Line Clamp for Plumbing, Automotive And Mechanical Application.

Screw Worm Gear American Type Hose Clamp

Marine Grade Power-Seal Stainless Steel Hose Clamp

American Stainless steel head piercing assembly machine

This equipment completes the production process of steel belt and hoop shell automatic assembly, riveting, forming, and blanking of large American-style throat hoops.

Stainless steel W2 German Type Hose CLamp

Our factory has automatic equipment, high monthly output, can produce many hose clamps, and can also undertake the design, development, production and processing of various hose clamp products.

Zinc Plated Steel Germany Type Hose Clamp

We produces a variety of hose clamps, stainless steel no-hub couplings and gaskets which are widely applied in the industries of auto oil pipeline, motor pipeline, drainage system, and so on.

Carbon steel German hose clamp welding machine

The equipment is operated by PLC touch screen, and the steps are simple and easy to learn. High operating efficiency, good stability, widely acclaimed in the industry.

316 Stainless Steel Perforated American Type Hose Clamp

The equipment adopts PLC touch screen operation, and the steps are simple and easy to learn. High operating efficiency, good stability, widely acclaimed in the industry.

Hose Clamps for Pipe, Intercooler, Plumbing, Tube

Hose clamps are widely used in motor vehicles, pharmaceuticals, sewage treatment purification and dust removal, auto parts and other machines, especially suitable for connection of middle and high-end models or parts of anti-corrosion materials. The hose clamp is relatively small and its value are also small, but its role is huge. It has a wide range of applications, torsion and pressure resistance, balanced torsional torque, firm and tight locking, a large adjustment range, and a beautiful appearance after assembly.

Japanese manganese steel spring clamp assembly machine

Spring clamp is made of spring steel and is stamped into a round shape at one time, with two ears for hand pressing on the outer ring. When clamping is required, you only need to press the ears firmly to make the inner ring bigger, so that it can be inserted into the round tube, and then loosen the handle to clamp. Easy to use. Can be reused.

Steel wire clamp assembly machine

The steel wire clamp is a ring-shaped clamp surrounded by two steel wires. The clamp has the characteristics of beautiful appearance, convenient use, strong clamping force and good sealing performance.

British hose clamp assembly machine

The machine is divided into two parts: first, the steel strip enters the machine for tooth pressing, automatic punching, and edge pressing. Then the material is automatically fed into another machine, automatically cut into shape, automatically assembled with the hoop shell, automatically screwed, automatically knocked round, automatically locked, and finally the product is produced.

Heavy duty clamp assembly machine

This equipment is composed of strip cutting, bending and welding, forming, bending and welding, forming, and finally rolling. And it is more advanced and of better quality than ordinary hose clamps, very reliable and safe.

Offset head German hose clamp assembly machine

The vibrating plate is automatically loaded, the circle is automatically knocked, the belt is locked, and the finished product is produced. The equipment has high operating efficiency and good stability, and is widely acclaimed in the industry.

Buckle cap type hose clamp assembly machine

The base is fed by a vibrating plate, and the steel belt is fed by a servomotor and cut into shape to be riveted with the base. The screws and hoop shells are fed by a vibrating plate and assembled by the manipulator, then grabbed to the top of the base for assembly, and then riveted twice. Press to finally complete the finished product and unload it.
