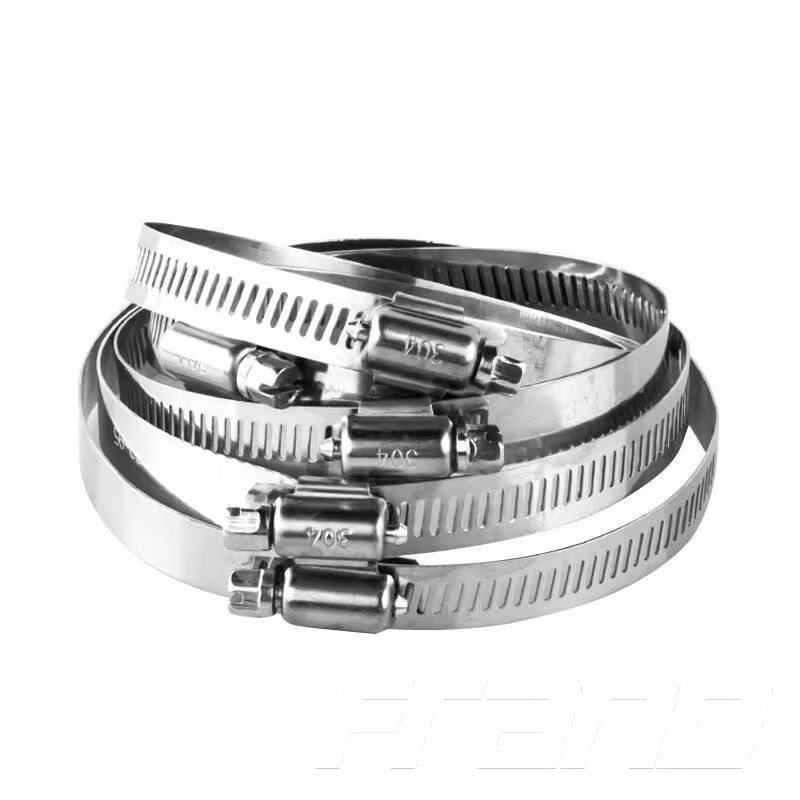

Perforated American Type Hose Clamp

Large American Hose Clamp Assembly Machine

• The large American-style hose hoop automatic assembly machine adopts automatic feeding of steel strips, hoop shells, and screws
• Automatically completes the cutting, forming of steel strips, riveting of hoop shells, locking screws, locking circles, and blanking,
• Complete the automated production of finished products.

•   WORKFLOW

STEP1: The steel belt is fed accurately by servo motor, the length can be set, cut and formed by the mold.

STEP2: The hoop shell is automatically loaded by the vibrating plate, and assembled with the formed steel strip, riveted and rolled.

STEP3: The screws are automatically loaded by the vibrating plate, and the screws are put into the hoop shell by the locking screw mechanism, and the belt is locked.

STEP4: After the assembly of the product is completed, the material is cut.

•  SPECIFICATION

Product name	Hose Clamp Assembly Machine
Size	1800mm(length)*1700mm(width)*1800(height)
Weight	1Ton
Working area	4000mm(length)*3000mm(width)
Strength	AC220v,50HZ
Pressure	0.5Mpa-0.7Mpa(72.5-101.5PSI)
Efficiency	1100pcs/hour
Service	One year
