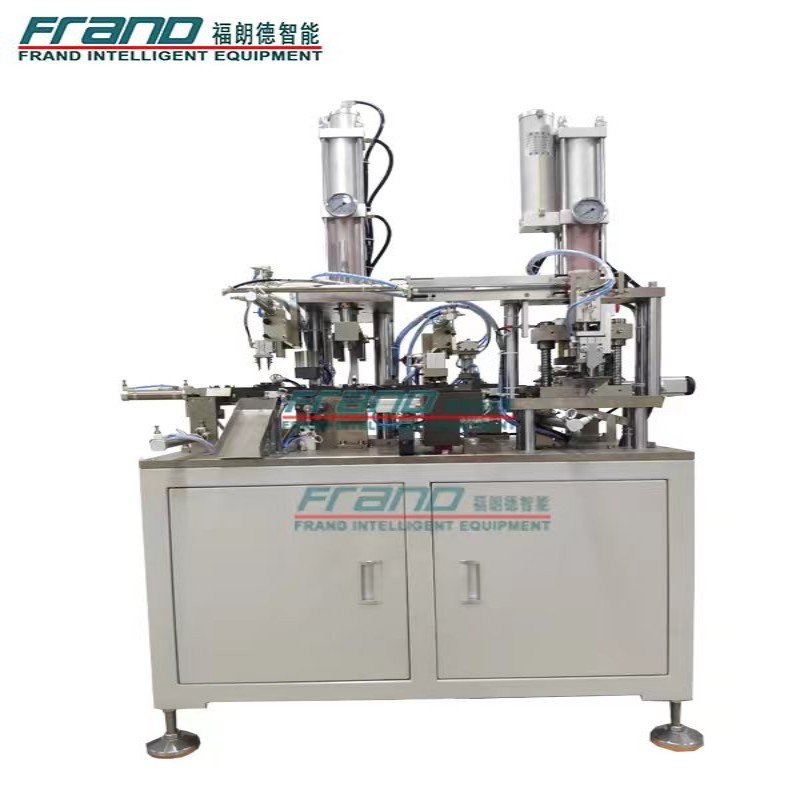

SS American Hose Clamp Front Section Assembly Machine

American Head Piercing Assembly Machine

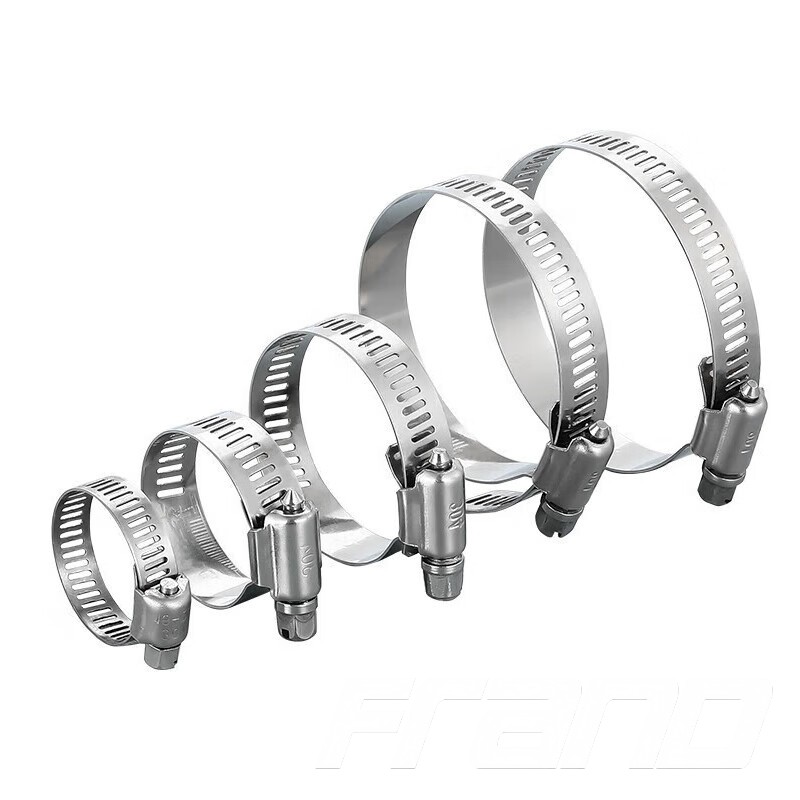

This equipment completes the production process of steel belt and hoop shell automatic assembly, riveting, forming, and blanking of large American-style throat hoops.

•   WORKFLOW

STEP1: The steel belt is fed accurately by servo motor, the length can be set, cut and formed by the mold.

STEP2: The hoop shell is automatically loaded by the vibrating plate, assembled with the formed steel strip and riveted.

STEP3: After completing the assembly of the product, the material is cut.

•  SPECIFICATION

Product name	Hose clamp assembly machine
Size	1200mm(length)*1700mm(width)*1800(height)
Weight	1Ton
Working area	3000mm(length)*3000mm(width)
Strength	AC220v,50HZ
Pressure	0.5Mpa-0.7Mpa(72.5-101.5PSI)
Efficiency	1300pcs/hour
Service	One year
