This equipment completes the production process of automatic assembly band, housing , riveting, forming,
rolling, lock screws , finished products output from large American-style hose clamps.
Warranty :
ChinaMachine Type :
1200pcs/hourVoltage :
CustomizedBrand Name :
Fujian xiamenWeight :
90daysCondition :
1 SetPower(W) :
Fujian xiamenPlace of Origin :
1TMachinery Test Report :
high efficiency hose clamp machinePacking :

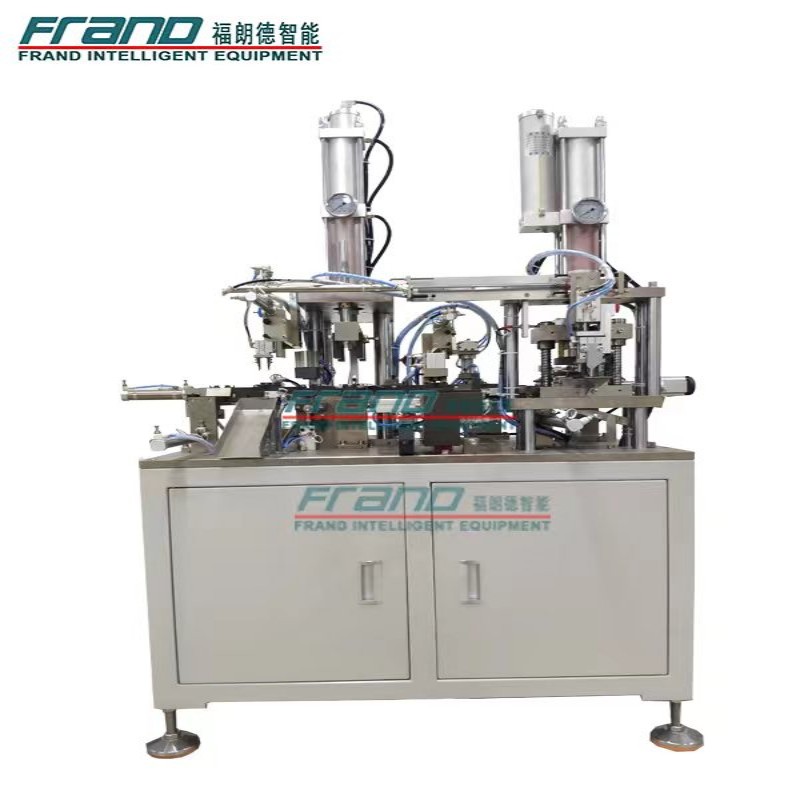

Wooden BoxAmerican Stainless Steel Hose Clamp Making Machine
This equipment completes the production process of automatic assembly band, housing ,
riveting, forming, rolling, lock screws , finished products output from large American-style hose clamps.
• WORKFLOW
STEP1: The steel belt is fed accurately by servo motor, the length can be set, cut and formed by the mold.
STEP2: The housing is loaded by the vibrating plate, assembled with the formed band, riveted automatically .
STEP3: After completing the assembly of the product, the material is output.
• SPECIFICATION
| Product name | Hose Clamp Assembly Machine |
| Size |
1200mm(L)*1700mm(W)*1800(H) |
| Weight |
1Ton |
| Working area |
3000mm(L)*3000mm(W) |
| Strength |
AC220v,50HZ |
| Pressure |
0.5Mpa-0.7Mpa(72.5-101.5PSI) |
| Efficiency |
1300pcs/hour |
| Service |
One year |
