Automatic Assembly Machine
Japanese style hose clamp assembly machine
Spring clamp assembly machine
Spring clamp assembly machine

Japanese style hose clamp assembly machine

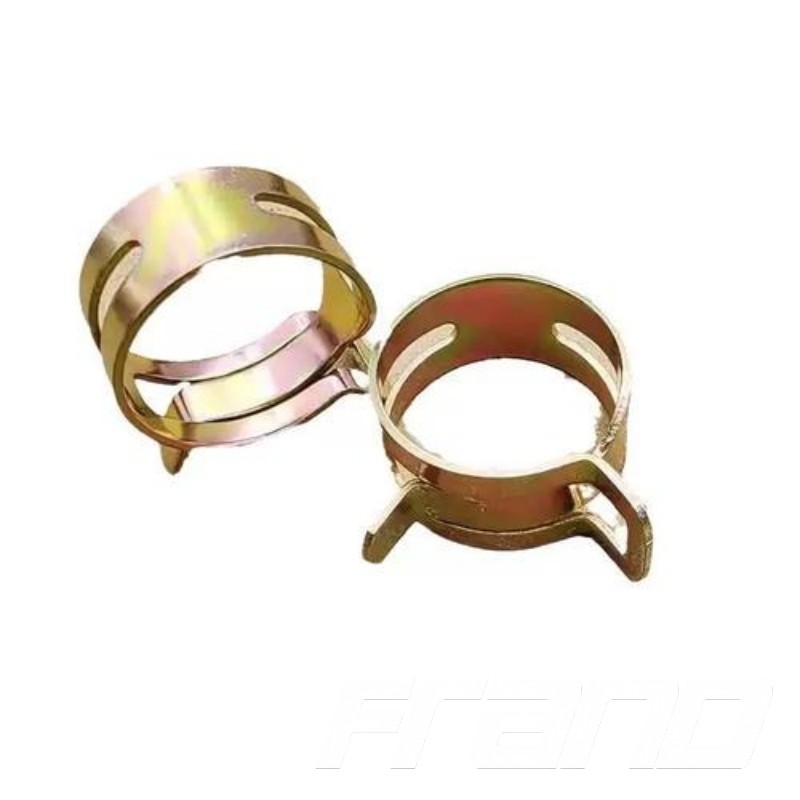

Spring clamps are also called Japanese clamps and spring clamps. It is made of spring steel and is stamped into a round shape, with two ears for hand pressing on the outer ring. When clamping is required, you only need to press the ears firmly to make the inner ring bigger, so that it can be inserted into the round tube, and then loosen the handle to clamp. Easy to use and can be used repeatedly.

  • Product Origin :

    China
  • Efficiency :

    1200pcs/hour
  • color :

    RAL7035
  • delivery_port :

    FOB
  • delivery_date :

    90days
  • qty :

    1 Set
  • Shipping Port :

    Fujian xiamen
  • weigh :

    0.6T
  • model :

    T13
  • Packing :

    Wooden Box

•   WORKFLOW

STEP1: The clamp is automatically loaded by the vibrating plate, and is grabbed by the manipulator into the assembly station.

STEP2: The plastic handle is fed by the vibrating plate and grabbed by the manipulator to the assembly station.

STEP3: After the robot grabbing mechanism is assembled, simultaneously grab the product above the unloading station and release the unloading.

•  SPECIFICATION



Product name Elastic clamp assembly machine
Size

1800mm(length)*1800mm(width)*1800(height)

Weight

0.6Ton

Working area

2000mm(length)*2600mm(width)

Strength

AC220v,50HZ

Pressure

0.5Mpa-0.7Mpa(72.5-101.5PSI)

Efficiency

1300pcs/hour

Service

One year
