Our fully automatic hose clamp assembly machine combines high-speed multi-station indexing with servo torque control and CCD visual inspection—helping manufacturers boost output, guarantee zero-defect quality, and replace up to 6 manual workers per line
Weight :
3-5 working daysCondition :
5000Power(W) :
1 SetMachinery Test Report :

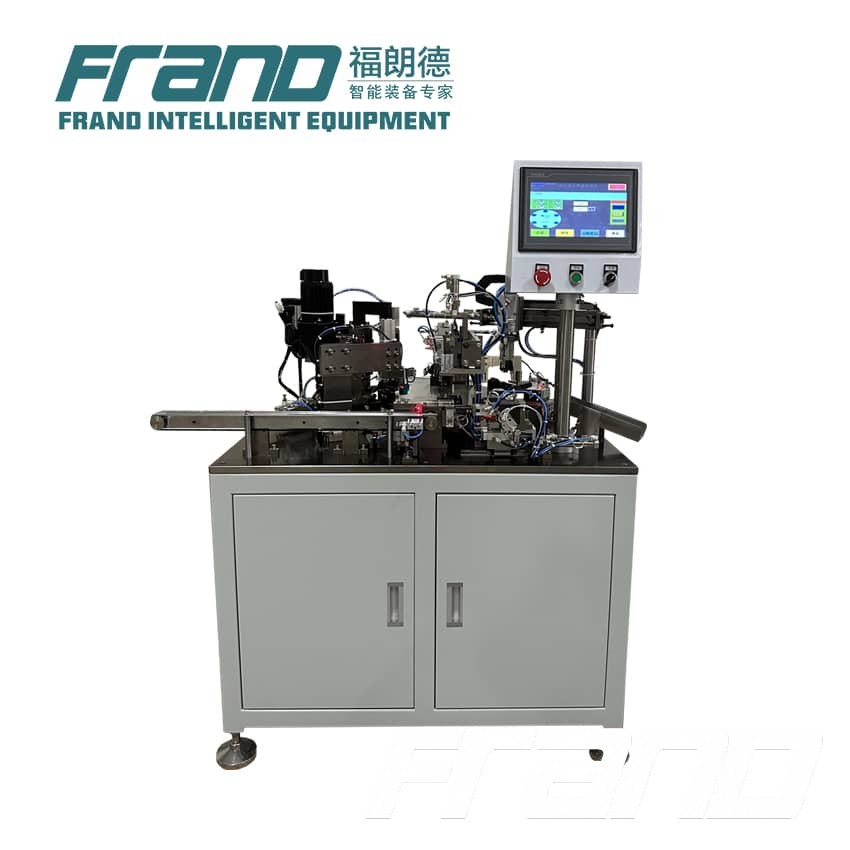

germany standard hose clamp machineHigh Speed Automatic Germany Type Hose Clamp Assembly Machine

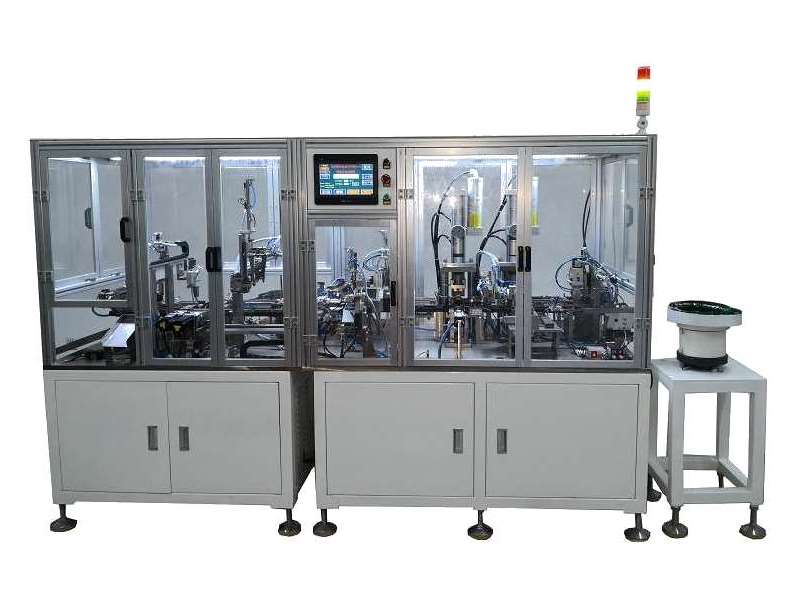

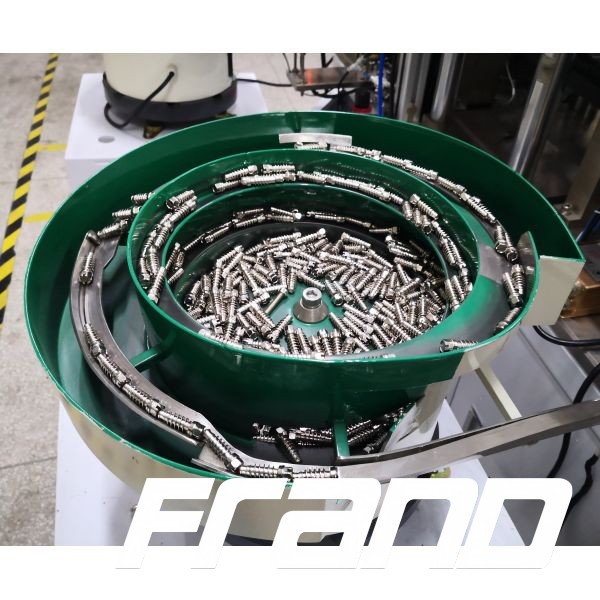

The Automotive Hose Clamp Assembly Production Line, including vibrating feeding tray, conveying structure, frame, holding mechanism, coiling mechanism, tightening mechanism, etc., is mainly used for automatic assembly and production of hose clamp.

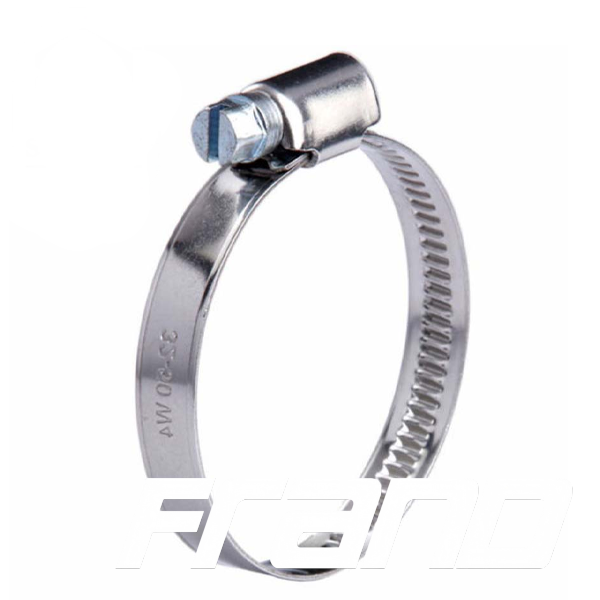

Hose clamps are widely used in automobiles, tractors, ships, gasoline engines, diesel engines, sprinklers and other mechanical equipment, the joints of the oil, gas, and liquid hoses, as well as the sewer connections of buildings and constructions, and all kinds of sturdy connection fittings for hose connections.
Products Features：
1. The linear structure is simple and easy to install and maintain.
2. Operating parts adopt parts of world famous brands.
3. Highly automated and intelligent operation, no pollution.
Technical Parameters:
|
Product name |
Automatic Germany Type Hose Clamp Assembly Machine |
|
Size |
2600mm(L)*1200mm(W)*1800mm(H) |
|
Weight |
1 Ton |
|
Work Area |
5000mm(L)*3000mm(W) |
|
Power |
Single-phase power 115v，60Hz （ANSI electric standards） |
|
Pressure |
0.5Mpa-0.7Mpa （72.5-101.5 PSI） |
|
Free Twisting Force |
0.8-1.3N/M (7.08-11.505 in/ibs) |
|
Destructive Twisting Force |
more than 13.56N/M (120 in/ibs) |
|
Equipment Failure Rate |
less than 0.5% |
|
Efficiency |
1000pcs/hour |
|
Warranty Period |
one year |
|
Additional Serves |
Professional technology training |
|
Brand of Main Parts |
SMC Japan, SIEMENS Germany, Panasonic Japan, Keyence Japan, Schneider France, BASLER Germany, |
