Automatic Assembly Machine
British hose clamp assembly machine

British hose clamp assembly machine

The machine is divided into two parts: first, the steel strip enters the machine for tooth pressing, automatic punching, and edge pressing. Then the material is automatically fed into another machine, automatically cut into shape, automatically assembled with the hoop shell, automatically screwed, automatically knocked round, automatically locked, and finally the product is produced.

  • Product Origin :

    china
  • Efficiency :

    1000-1200pcs/hour
  • delivery_port :

    FOB
  • delivery_date :

    3-5 working days
  • qty :

    5000
  • Shipping Port :

    1 Set
  • weigh :

    500kg
  • Packing :

    Wooden Box

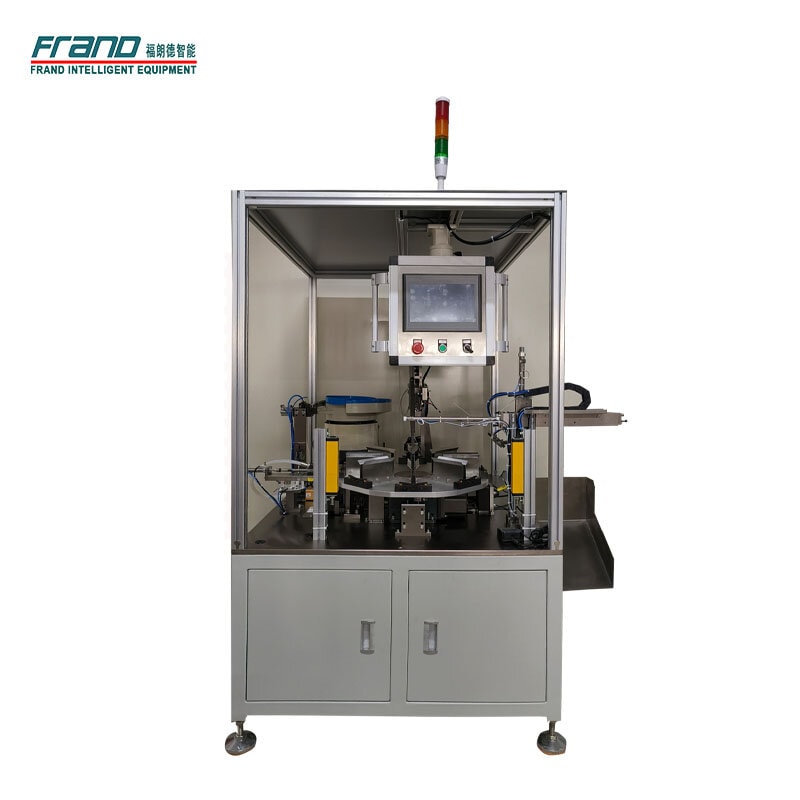

   British hose clamp assembly machine

The machine is divided into two parts: first, the steel strip enters the machine for tooth pressing, automatic punching, and edge pressing. Then the material is automatically fed into another machine, automatically cut into shape, automatically assembled with the hoop shell, automatically screwed, automatically knocked round, automatically locked, and finally the product is produced.

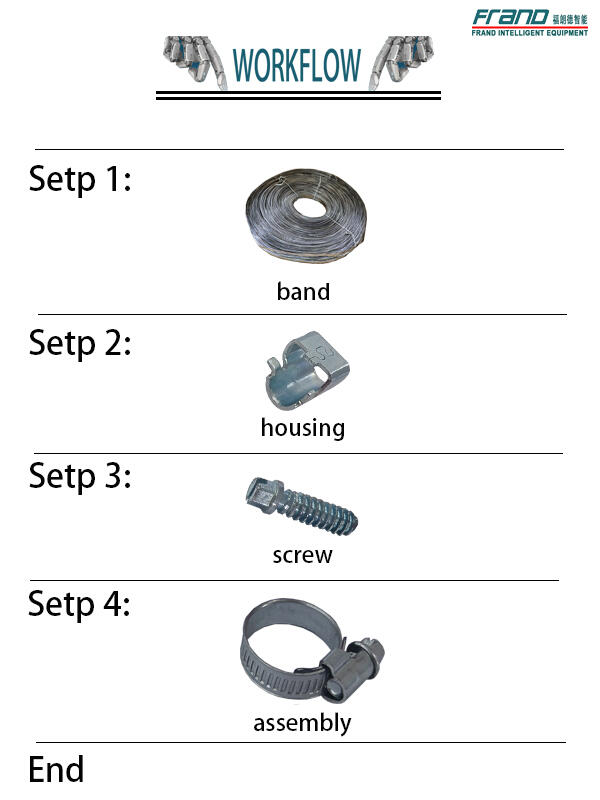

•   WORKFLOW





•  SPECIFICATION

Product name British hose clamp assembly machine
Size 1800mm(length)*1700mm(width)*1800(height)
Weight 0.5Ton
Working area 4000mm(length)*3000mm(width)
Pressure 0.5Mpa-0.7Mpa(72.5-101.5PSI)
Strength Av220v,50HZ
Efficiency 1000-1200pcs/hour
Service one year



•  OTHER PRODUCTS



Leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
Related Products
Hose clamps automatic assembly equipment Hose clamps automatic assembly equipment
View More
hose clamp automatic assembly machine
Hose clamps series automatic assembly equipment of funtion powerful、Stable opera-tion、High production efficiency, Can achieve: automatic feeding、automatic posi-tioning、automatic riveting、automatic rolling round、automaticlocking、automatic detection、automatic discharge function andso forth. Based on the existing operat-ing experience, a workercanlook afterseven devicesso can achieve uninterrupted production.
Germany type hose clamp with welding Germany type hose clamp with welding
View More
SS410 German type hose crimping welding machine
This equipment is used for automatic assembly of welding German products Welded products are manually fed into the conveyor chute Automatically bend, roll, and lock screws Equipment operation is simple and easy to learn The equipment can be selected to produce diameters 12, 16, 22, 25, 27
View More
Small 304 Through-hole small American clamp assembly machine
This equipment completes the automatic assembly, riveting, rolling and locking of the steel strip, hoop shell and screws of the small American hose clamp, and finally completes the production of the finished product.
View More
316 American Stainless steel hose clamp machine
This equipment completes the production process of steel belt and hoop shell automatic assembly, riveting, forming, and blanking of large American-style throat hoops.
Large American hose clamp assembly machine Large American hose clamp assembly machine
View More
American style clamp with holes assembly machine
This equipment completes the automatic assembly, riveting, rolling, and screw locking of steel strips, hoop shells, and screws of large American-style throat hoops, and finally completes the production of finished products.
View More
Japanese clamp assembly machine
The function of the equipment is to complete the automatic assembly of elastic clamps. Clamps and plastic handles are fed by a vibrating plate, automatically assembled, unloaded, etc., and finally the automatic assembly of the clamps is completed.
Germany type hose clamp with welding Germany type hose clamp with welding
View More
W2 German type clamp with welding assembly machine
The equipment can be selected to produce diameters 12, 16, 22, 25, 27 Equipment operation is simple and easy to learn
